What is Route Summarization?: Explained
Wednesday, October 25, 2023

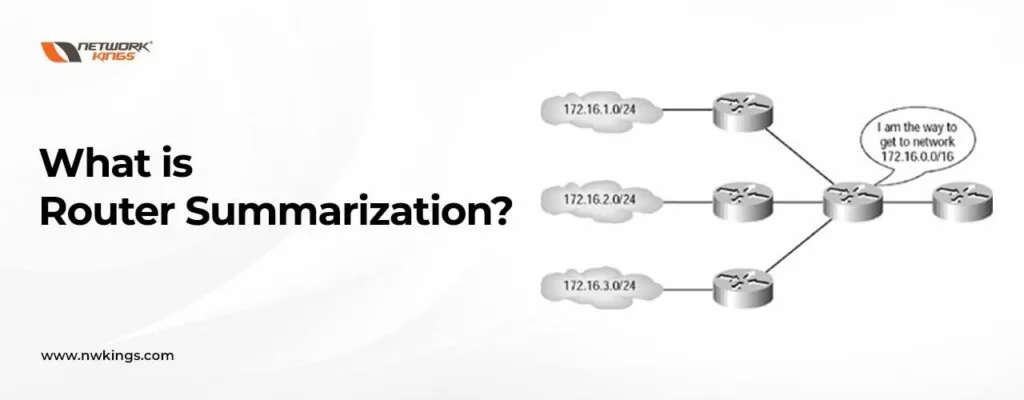

Route summarization, also known as route aggregation or supernetting, is a technique used in networking to reduce the number of routes in a routing table by combining multiple smaller subnets into a single larger network address. Route Summarization helps simplify and optimize routing in a network. It can be used in routing protocols like OSPF, EIGRP, and BGP.
What are the advantages of Route Summarization?
The advantages of Route Summarization are as follows-
The key benefit of route summarization is a smaller routing table. Since with the help of summarization, multiple routes are aggregated into a single summarized route, routing table size decreases.
Summarization helps in saving bandwidth. Since the routing table is reduced, less information must be exchanged between routers during the routing protocol updates. This leads to more efficient use of network bandwidth and faster convergence in response to network changes
Route Summarization also helps to save CPU memory and less processing since routes are fewer and hence fewer packets to process.
How to summarize routes?
First, list all the subnets you want to summarize. These subnets should be contiguous.
Let’s take
172.16.0.0/24
172.16.1.0/24
Convert the subnets to binary form.
172.16.0.1/24: – 10101100000100000000000000000001
172.16.1.1/24: – 10101100000100000000000100000001
Calculate the number of common bits in this binary format.
10101100000100000000000000000001
10101100000100000000000100000001
Here we have 23 bits in common.
Hence our summary address subnet mask will be /23 and the summary address will be 172.16.0.0/23
Configuration: –
Let us look at the configuration of Summarization using the topology below.
Router#configure terminal
Router(config)#hostname R1
R1(config)#interface fastEthernet 0/0
R1(config-if)#ip address 192.168.12.1 255.255.255.0
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#interface loopback 0
R1(config-if)#ip address 172.16.0.1 255.255.255.0
R1(config-if)#exit
R1(config)#interface loopback 1
R1(config-if)#ip address 172.16.1.1 255.255.255.0
R1(config-if)#exit
EIGRP CONFIGURATION: –
R1(config)#router eigrp 1
R1(config-router)#no auto-summary
R1(config-router)#network 192.168.12.0
R1(config-router)#network 172.16.0.0
R1(config-router)#exit
R2: –
Router# configure terminal
Router(config)#hostname R2
R2(config)#interface fast Ethernet 0/1
R2(config-if)#ip address 192.168.12.2 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#exit
EIGRP CONFIGURATION: –
R2(config)#router eigrp 1
R2(config-router)#no auto-summary
R2(config-router)#network 192.168.12.0
*Mar 1 00:05:27.191: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 1: Neighbor 192.168.12.1
(FastEthernet0/1) is up: new adjacency
EIGRP is UP.
Verification: –
Let us check the routes on R1 and R2
R1#show ip route
Codes: C – connected, S – static, R – RIP, M – mobile, B – BGP
D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
E1 – OSPF external type 1, E2 – OSPF external type 2
i – IS-IS, su – IS-IS summary, L1 – IS-IS level-1, L2 – IS-IS level-2
ia – IS-IS inter area, * – candidate default, U – per-user static route
o – ODR, P – periodic downloaded static route
The Gateway of last resort is not set
C 192.168.12.0/24 is directly connected, FastEthernet0/0
172.16.0.0/24 is subnetted, 2 subnets
C 172.16.0.0 is directly connected, Loopback0
C 172.16.1.0 is directly connected, Loopback1
R2#show ip route eigrp
172.16.0.0/24 is subnetted, 2 subnets
D 172.16.0.0 [90/409600] via 192.168.12.1, 00:01:47, FastEthernet0/1
D 172.16.1.0 [90/409600] via 192.168.12.1, 00:01:47, FastEthernet0/1
R2#show ip route
Codes: C – connected, S – static, R – RIP, M – mobile, B – BGP
D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
E1 – OSPF external type 1, E2 – OSPF external type 2
i – IS-IS, su – IS-IS summary, L1 – IS-IS level-1, L2 – IS-IS level-2
ia – IS-IS inter area, * – candidate default, U – per-user static route
o – ODR, P – periodic downloaded static route
The Gateway of last resort is not set
C 192.168.12.0/24 is directly connected, FastEthernet0/1
172.16.0.0/24 is subnetted, 2 subnets
D 172.16.0.0 [90/409600] via 192.168.12.1, 00:02:57, FastEthernet0/1
D 172.16.1.0 [90/409600] via 192.168.12.1, 00:02:57, FastEthernet0/1
R2#ping 172.16.0.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/12/20 ms
We can ping 172.16.0.1 hence it is reachable.
Summarization: –
Since we have already calculated the summarized network for 172.16.0.0/24, 172.16.1.0/24 which is 172.16.0.0/23. Let’s configure it.
R1#configure terminal
R1(config)#interface fastEthernet 0/0
R1(config-if)#ip summary-address eigrp 1 172.16.0.0 255.255.254.0
*Mar 1 00:09:54.743: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 1: Neighbor 192.168.12.2
(FastEthernet0/0) is resync: summary configured
The above message pops up which shows that summarization is configured.
R2: –
*Mar 1 00:09:32.251: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 1: Neighbor 192.168.12.1
(FastEthernet0/1) is resync: peer graceful-restart
The above message pops up which shows that summarization is configured.
R2: –
*Mar 1 00:09:32.251: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 1: Neighbor 192.168.12.1
(FastEthernet0/1) is resync: peer graceful-restart
Verification: –
R1#show ip route eigrp
172.16.0.0/16 is variably subnetted, 3 subnets, 2 masks
D 172.16.0.0/23 is a summary, 00:00:57, Null0
R2#show ip route eigrp
172.16.0.0/23 is subnetted, 1 subnets
D 172.16.0.0 [90/409600] via 192.168.12.1, 00:00:15, FastEthernet0/1
R2#ping 172.16.0.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/10/12 ms
After summarization also we can ping 172.16.0.1 hence this network is reachable.
