Network switching forms the backbone of modern enterprise networks. Whether you're preparing for Cisco certifications or building your IT career, understanding concepts like collision domains, broadcast domains, VLANs, and trunk ports is essential. This comprehensive guide breaks down these fundamental networking concepts and shows you how they work together to create efficient, secure networks.

What Is a Collision Domain vs Broadcast Domain?

Before diving into advanced switching concepts, you need to understand how network traffic behaves at different layers.

A collision domain refers to the network segment where data packets can collide when multiple devices transmit simultaneously. This was a significant concern in the era of hubs, where all connected devices shared a single collision domain. When two devices sent data at the same time, collisions occurred, forcing retransmissions and reducing network efficiency.

Modern switches eliminate this problem elegantly. Each switch port operates in full-duplex mode with separate transmit and receive channels, meaning every port becomes its own collision domain. This is why switches dramatically outperform hubs in network performance. A broadcast domain, on the other hand, encompasses all devices that receive broadcast frames. When a device sends an ARP request to discover a MAC address, every device in that broadcast domain receives the frame. By default, all ports on a switch belong to VLAN 1, creating a single broadcast domain. This is where VLANs become crucial for network segmentation.

Think of it this way: a hub is like everyone sharing one Zoom call where anyone speaking interrupts others. A switch creates private conversations, but announcements (broadcasts) still reach everyone unless you separate them into different VLANs.

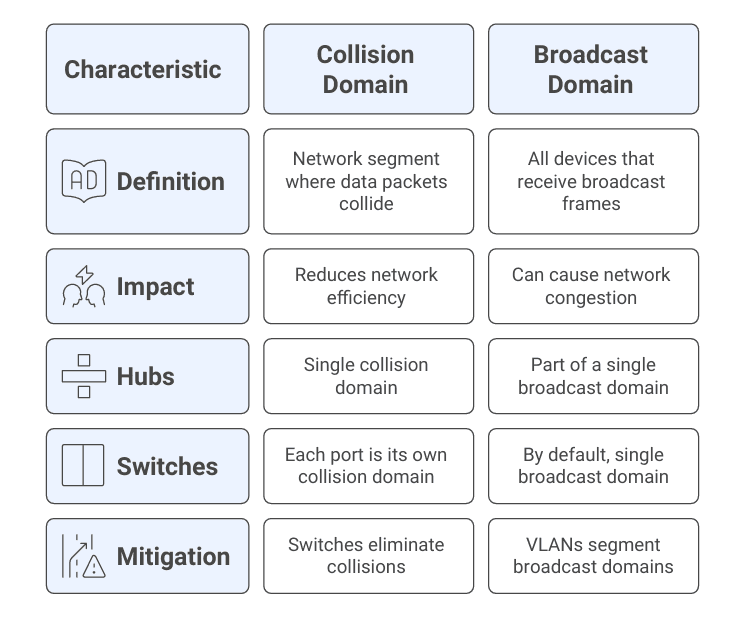

Collision Domain vs. Broadcast Domain

How Does a Switch Learn MAC Addresses?

Switches use a CAM table (Content Addressable Memory), also called a MAC address table, to make intelligent forwarding decisions. Here's how the learning process works:

• When a frame arrives at a switch port, the switch examines the source MAC address and records it alongside the incoming port number and VLAN ID

• If the destination MAC address exists in the CAM table, the switch forwards the frame only to that specific port • If the destination is unknown, the switch floods the frame out all ports in that VLAN (unknown unicast flooding)

• MAC table entries age out after 300 seconds (5 minutes) by default, though you can configure static entries for critical devices like firewalls.

Understanding this process helps you troubleshoot connectivity issues. If a device isn't communicating properly, checking the MAC address table with show mac address-table often reveals whether the switch has learned the device's MAC address.

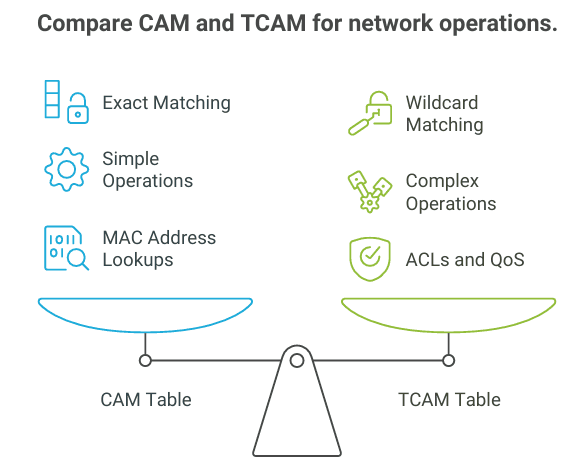

CAM Table vs TCAM: What's the Difference?

While CAM handles Layer 2 MAC address lookups using exact matching, TCAM (Ternary CAM) handles more complex operations. TCAM supports wildcard matching using three states: 0, 1, and "don't care" (X). This makes TCAM perfect for access control lists (ACLs), quality of service (QoS) policies, and routing prefix lookups where partial matching is necessary.

What Is a VLAN and Why Do You Need It?

A Virtual LAN (VLAN) creates logical network segments within a physical switch infrastructure. Without VLANs, flat networks suffer from several problems: excessive broadcast traffic, security vulnerabilities, wasted infrastructure, and management nightmares. VLANs solve these issues by providing:

• Reduced broadcast traffic: Broadcasts stay within their VLAN, reducing unnecessary network load

• Enhanced security: Devices in different VLANs cannot communicate without routing, creating natural security boundaries

• Logical grouping: Departments or functions can be grouped regardless of physical location

• Cost efficiency: One physical switch can serve multiple logical networks

Each VLAN typically maps to an IP subnet, and VLAN IDs range from 1 to 4094 (though some are reserved). Best practice recommends avoiding VLAN 1 for user traffic since it's the default native VLAN. Access Ports vs Trunk Ports Explained Understanding port types is crucial for proper VLAN configuration. Access ports carry traffic for a single VLAN and are used for end devices like computers.

Access Ports vs Trunk Ports Explained

Understanding port types is crucial for proper VLAN configuration

Access ports carry traffic for a single VLAN and are used for end devices like computers, printers, and IP phones. Frames leaving access ports are untagged, meaning the device doesn't need to understand VLAN tagging.

Trunk ports carry traffic for multiple VLANs between switches, routers, or servers. Trunks use 802.1Q tagging to identify which VLAN each frame belongs to. The 802.1Q standard adds a 4 byte tag containing priority bits and a 12-bit VLAN ID field.

The native VLAN is a special case: frames belonging to the native VLAN traverse trunks untagged. By default, VLAN 1 serves as the native VLAN. Mismatched native VLAN configurations between trunk endpoints cause connectivity issues and security vulnerabilities, so always ensure consistency.

Access Ports vs Trunk Ports

How to Configure Trunk Ports and Disable DTP

Cisco's Dynamic Trunking Protocol (DTP) automatically negotiates trunk links, but security best practices recommend disabling it in production environments. Here's the recommended approach:

• Configure trunks statically using switchport mode trunk

• Specify the encapsulation with switchport trunk encapsulation dot1q

• Disable DTP negotiation using switchport nonegotiate

• Explicitly define allowed VLANs rather than allowing all by default

A common configuration mistake involves the switchport trunk allowed vlan command. Using this command without the "add" keyword replaces the entire allowed VLAN list rather than adding to it. Always use switchport trunk allowed vlan add [vlan-id] when adding VLANs to an existing trunk.

Inter-VLAN Routing: How Different VLANs Communicate

Since VLANs create separate broadcast domains, devices in different VLANs require Layer 3 routing to communicate. Two common approaches exist:

Router-on-a-stick uses a router with subinterfaces connected to a switch trunk port. Each subinterface handles routing for one VLAN. While functional, this creates a potential bottleneck.

Layer 3 switching with SVIs (Switch Virtual Interfaces) is the preferred modern approach. The switch performs routing internally, offering significantly better performance than external routing.

Troubleshooting VLANs and Trunks

When VLAN connectivity fails, systematic troubleshooting saves time. Use these essential commands:

• show vlan brief displays VLAN assignments

• show interfaces trunk reveals trunk status and allowed VLANs

• show interfaces status shows port modes and VLAN assignments

• show mac address-table confirms MAC learning

Common issues include mismatched trunk configurations, forgotten VLAN assignments, native VLAN mismatches, and VLANs not allowed on trunk links.
