In computer networking, how devices communicate and share information depends upon various topologies. One of the most popular and widely used network topologies is the star topology.

This blog will explore star network topology in detail, discussing its structure, advantages, disadvantages, and applications. Keep reading the blog till the end to understand better.

What is Star Topology?

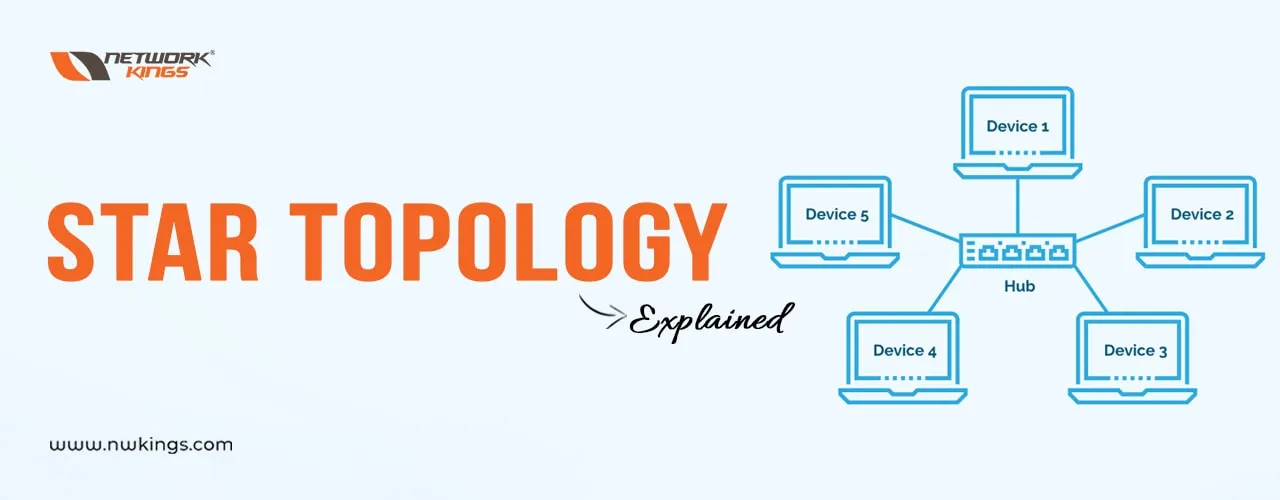

Star topology is a network configuration where all devices (or nodes) connect to a hub or switch. This hub acts as a repeater for data flow, allowing communication between devices within the network. The star topology resembles a star shape, with the hub at the center and the nodes extending outward.

What are the characteristics of the star topology?

Understanding the characteristics of star topology is essential for grasping its functionality and benefits. The characteristics of the star topology are as follows-

  • Centralized Structure: All nodes connect to a single central point (hub or switch) in a star topology. This centralized structure provides a clear and organized layout for the network.
  • Point-to-Point Connection: Each device has a dedicated connection point to the hub, which minimizes data packets collisions and allows for better control over data transmission. This feature is vital in environments with high data traffic.
  • Scalability: Star topology is highly scalable, meaning that adding or removing devices can be done without disrupting the existing network. New nodes connect to the central hub without affecting the performance of other devices.
  • Ease of Troubleshooting: The centralized nature of star topology makes it easier to identify and resolve issues. Network administrators can quickly isolate the problem without checking multiple connections or cables if a device fails.
  • Flexible Layout: Star topology allows for various physical layouts. For example, devices get arranged in different configurations around the central hub, depending on space and design requirements.
  • Data Flow Direction: Data in a star topology flows as predicted. When one device sends data to another, it always passes through the central hub, which ensures orderly communication.

NOTE: Read about Ring Topology in detail.

What are the advantages?

Star topology comes with several advantages that make it a preferred choice for many organizations, such as

  • Ease of Installation and Configuration

Star topology is relatively easy to set up, requiring minimal effort to connect devices to the central hub. This simplicity makes it an attractive option for both small and large networks. Network administrators can quickly add new devices without extensive reconfiguration.

  • Centralized Management

Managing the network becomes more straightforward with all devices connected to a central hub. Network administrators can easily monitor traffic, troubleshoot issues, and implement changes from a single point. This centralized management reduces the time required for maintenance and improves overall efficiency.

  • Reduced Data Collisions

Since each device has its dedicated connection to the hub, using a node in the network, minimizing data collisions. In contrast to bus topology, where multiple devices share the same communication medium, star topology ensures that each device communicates independently, improving network performance and reliability.

  • Scalability

Star topology allows for easy scalability. Adding or removing devices does not disrupt the existing network structure, making it simple for organizations to grow as needed. This flexibility is particularly beneficial for businesses anticipating changes in their networking requirements over time.

  • Fault Isolation

In a star topology, if one device fails or needs maintenance, it does not affect the rest of the network. This fault isolation enhances overall network reliability. If a cable connecting a device to the hub is damaged, only that device will be affected, allowing the rest of the network to continue functioning normally.

  • Enhanced Performance

Star topology can deliver high-speed data transmission with dedicated connections and minimum collisions. The central hub comprises advanced features such as bandwidth management and traffic prioritization to enhance performance.

  • Support for Various Cable Types

Star topology supports various types of cabling—twisted pair, coaxial, or fiber optic cables—allowing organizations to choose the most suitable option based on their budget and performance needs.

What are the disadvantages?

While star topology has many advantages, it also comes with some drawbacks, such as

  • Central Point of Failure

The central hub is a critical component of the network. If the hub fails, all connected devices lose communication, leading to network downtime. This reliance on a single point makes redundancy solutions necessary for mission-critical applications.

  • Cost of Central Hub

Setting up a star topology requires investment in a reliable central hub or switch. For networks with numerous devices, this cost can be significant. Organizations must weigh the benefits against potential expenses when considering this topology.

  • Limited Cable Length

The distance between devices and the central hub can limit the overall size of the network. Long cable runs may lead to signal degradation and reduced performance. You must follow manufacturer specifications for cable lengths to maintain optimal performance.

  • Maintenance Costs

While troubleshooting is easier in star topology, ongoing maintenance of the central hub is costly. Regular upgrades or replacements are necessary to keep up with technology advancements and increased network demands.

  • Complexity in Large Networks

Managing a star topology can become complex in networks with numerous hubs and switches. Proper planning and management tools are essential to monitor and maintain such vast systems.

NOTE: Read about Bus Topology in detail.

What are the applications of topology?

The applications of star topology are as follows-

  • Local Area Networks (LANs)

Star topology gets used in local area networks (LANs) within offices, schools, and homes. The centralized structure allows efficient communication among devices, making it ideal for environments where users need to share resources like printers and file servers.

  • Data Centers

Many data centers utilize star topology for their internal networks due to its scalability and ability to manage data traffic. In these settings, switches can be used as central hubs to interconnect numerous servers without compromising performance.

  • Telecommunication Networks

Telecommunication companies often implement star topology in their infrastructure to connect various communication devices and ensure reliable service delivery. This structure facilitates easy management of services and connections among different nodes within their networks.

  • Wireless Networks

Although primarily associated with wired connections, star topology can also apply to wireless networks where multiple devices connect to a central wireless access point (AP). This configuration simplifies administration while allowing multiple users to access shared resources seamlessly.

  • Home Networking

Many home networking setups use star topology due to its simplicity and effectiveness in managing multiple devices, such as computers, printers, smart TVs, and gaming consoles connected through a central router or switch.

  • Educational Institutions

Schools often use star topology in computer labs and administrative offices where multiple devices need reliable connectivity for educational programs, online resources, and administrative tasks.

  • Office Environments

In office settings where numerous employees depend on shared resources like printers and servers, star topology provides an effective solution by allowing seamless communication while maintaining individual device connections.

NOTE: Read about Mesh Topology in detail.

How is this better than the other topologies?

To better understand where star topology fits in the networking landscape, let us briefly compare it with other common topologies:

  • Bus Topology

In bus topology, all devices connect along a single cable (the bus). While this setup is cost-effective, it suffers from performance issues as more devices are added and is prone to collisions. Troubleshooting bus networks can be complex since any break in the cable can take down the entire network.

  • Ring Topology

Ring topology connects devices in a circular manner, where each device has exactly two neighbors. This setup can lead to delays in data transmission if one device malfunctions because data must traverse the entire ring to reach its destination. Additionally, if one connection goes down, it affects the network unless dual rings get implemented for redundancy.

  • Mesh Topology

In mesh topology, each device connects directly to every other device in the network. While this provides redundancy and fault tolerance, it can be complex and costly to set up compared to star topology since every new connection increases installation costs significantly.

How to implement star topology?

When setting up a star topology, consider these best practices to ensure optimal performance and reliability:

  • Choose Quality Hardware

Invest in high-quality hubs or switches that can handle traffic demands without bottlenecks. Selecting hardware with good warranties and support options is also advisable for reliability.

  • Plan Cable Layout Carefully

Ensure cable lengths do not exceed recommended limits to maintain signal integrity and avoid performance issues. Use proper cabling standards such as CAT5e or CAT6 for Ethernet connections based on your speed requirements.

  • Monitor Network Performance

Regularly monitor network performance and traffic patterns using management tools to identify potential issues before they escalate. Implementing SNMP (Simple Network Management Protocol) can help monitor device status.

  • Implement Redundancy

Consider implementing redundancy measures for the central hub to mitigate risks associated with a single point of failure. It could involve using redundant switches or configuring failover systems that activate if one component fails.

  • Document Network Configuration

Keep comprehensive documentation of your network setup, including device configurations, IP address assignments, cable layouts, and any changes made over time. It will streamline troubleshooting processes and help new personnel understand the network structure quickly.

  • Regular Maintenance Checks

Schedule regular maintenance checks on your hardware to ensure everything operates smoothly. Replace outdated components as needed to prevent unexpected failures.

NOTE: Read about Ring Topology in detail.

Wrapping Up!

Star topology remains a popular choice for networking due to its ease of installation, centralized management, scalability, and performance benefits. While it has its disadvantages—such as reliance on a central hub and potential costs—its advantages often outweigh these concerns for many organizations.
