Bridges in Networking: The Traffic Controllers of Data
Saturday, October 4, 2025
Well, you know, today in our lives we completely rely on computer networks to get connected. Whether it's emails, video streaming, or browsing, millions of devices communicate with each other over these networks every second. Does it ever occur to you how this data flows from one place to another without getting lost? There are network devices that work on this, which help manage and direct the flow of data. Bridges are one of these important devices.
Suppose a bridge in networking is similar to a traffic controller who is standing at a busy junction. It basically decides where the data needs to go and ensures it reaches the right place. Theoretically, it sounds very easy, but the way networks build up and how they actually run is a very important thing about bridges.
If you are a part of IT or very curious about how data moves in networks, learning about bridges would be the starting point. In this blog, we will explain all.
What are Bridges in Networking?
A bridge is a device that joins two or more portions (or segments) of a network. It operates on Layer 2, the Data Link Layer in the OSI model (a model that helps to explain how things are connected in a network).
As such, a bridge is smarter than the basic devices, such as hubs that send data to all devices. It examines the data in each packet and finds them specifically where they need to go. This prevents unnecessary traffic in every place, and the network becomes busy.
Bridges, instead, use a special address method called MAC addresses for this. A MAC address is like a unique house address for every device. Once data reaches the bridge, it checks the destination MAC address and transfers it only to the correct segment of the network. Speeding up the network and improving how it works.
How Does a Bridge Know Where to Send Data?
The bridge uses something called a MAC address table. This is similar to a memory list that tells the bridge which devices are connected to which part of the network.
Initially, this table remained empty. However, as devices send data, the bridge takes note of the location of every device and eventually adds its MAC address to this table and remembers which segment it belongs to as a process of automatic action; no manual intervention whatsoever is required to set everything.

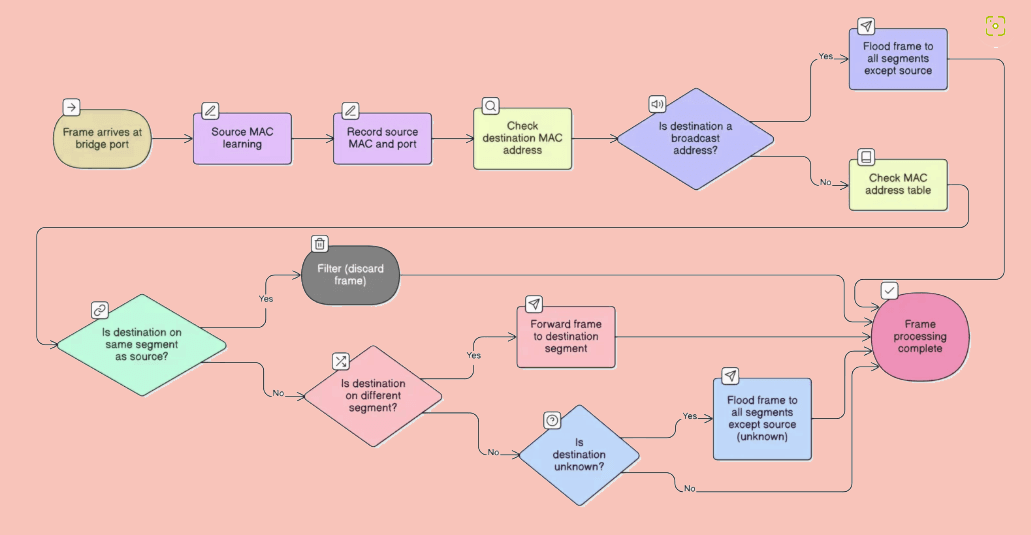

How Does a Bridge Function in Networking?
The bridge connects different parts of a network and makes intelligent decisions about where to send the data. It works in a few simple steps:
1. Receives Data Packets
Any time a device sends data over the network, the device first breaks the data into small units called packets. The bridge will receive these packets and check for their forwarding addresses.
2. Looks at the MAC Address
Every packet has a MAC address: a unique ID for those lucky devices it is destined for. The bridge reads the destination MAC address and compares it against its own MAC address table (which tells you which devices are on which side of the bridge).
3. Learns and Remembers
This MAC address table starts out empty. With every passing packet that the bridge sees, it learns where that device is located and stores it in this MAC address table. This is called learning, and it happens automatically.
4. Forwards or Filters the Packet
When the bridge knows the whereabouts of a destination device, it forwards the packet across to that part of the network.
If the destination is on the same segment as the sender, it simply filters the packet and does not do forwarding altogether, thus alleviating some traffic.
5. Cut Down on Network Traffic
A bridge sends data only where it is wanted, thereby reducing unwanted traffic. That is, the network functions in a more speedy and efficient manner.
For Example
A bridge connecting two rooms of computers. Whenever a computer in Room A sends data to a computer in Room B, the bridge checks the destination address and sends the data solely to Room B, and not to everyone in Room A.
Types of Bridges in Computer Networks
Network bridges come in different types, each used for a specific purpose. Let’s look at the most common ones:
1. Transparent bridges
These are pretty much the most commonly used bridges.
They work silently in the background, and the devices on that network don't even notice when it is present.
Such bridges need very little, if any, configuration on the computer.
The IEEE 802.1D standard governs the operation of this bridge.
Mostly used in Ethernet LANs.
Example Use: Connecting two sides of a LAN while reducing traffic.
2. Source Routing Bridge
An old bridge used mainly in Token Ring networks (IBM).
This type of bridge stores the entire route to be taken by the data in the sending device.
The information related to the path is sent with the data in each frame.
The receiving protocol simply follows the defined path by the Sender.
Example Use: Networks where the path has to be under manual control or predefined.
3. Translational Bridge
These bridges serve to connect different types of networks, such as Ethernet and Token Ring.
They translate or convert the data frames from one format to the other so that both sides can be conversant.
Today, such bridges are rare, but they were quite useful in earlier times when a lot of networks were relying on disparate technologies.
Example Use: Converting between two different network technologies.
4. Wireless Bridge
Used for connecting two segments of a network wirelessly (no cabling involved).
Excellent for cases when wiring is difficult: when there is an open area between two buildings.
Radio signals are employed to transmit data.
Some can be operated for a long distance (even kilometers) using powerful antennas.
Example Use: Linking two buildings across a street without running cable underground.
Bridge vs. Other Network Devices: A Quick Comparison
Understanding the differences in characteristics of other networking devices is key to knowing their use at specific times and places. Hubs, switches, and routers differ from bridges in the following ways: a simple comparison of these devices is shown here:
Feature | Bridge | Hub | Switch | Router |
Function | The devices that operate at the data link layer are the ones that interconnect and, thereby, separate two or more network segments. | The devices that connect network devices only to send and receive data over all ports without any filtering. | Connects multiple devices and filters data at Layer 2 (MAC addresses) | Connects two different networks and forwards data at the network layer. (Layer 3) |
Data Handling | Management of data flows only to the accurate channel on the MAC basis. | Sends a message to every device connected to the network (broadcast). | Data is sent specifically to an individual device using MAC addresses. | Data routes by IP addresses. |
Intelligence | Learning MAC addresses and building a table | This is a simple repeater, not intelligent. | More intelligent with the MAC address table | Intelligent; employs routing tables and protocols |
Network Layer | Data Link Layer (Layer 2) | Physical Layer (Layer 1) | Data Link Layer (Layer 2) | Network Layer (Layer 3) |
Used For | By splitting collision domains, you can reduce traffic | You can increase network size while causing collisions | Reduces the number of collisions, segments networks | Connects one network with another (LAN to WAN) |
Broadcast Handling | Carries out selective data filtering by forwarding the same | Broadcasting complete data to all devices | Carries out selective data filtering by forwarding the same | Routes data between networks while being able to control broadcasts |
Typical Use Case | Small to medium LANs | Very small or legacy networks | Most modern LANs | Internet connection, inter-network communication |
Performance Impact | Improves network efficiency by filtering | Can cause network congestion | High efficiency with filtering | Manages large-scale network traffic efficiently |
Using Bridges in Computer Networking: Pros and Cons.
Pros
Cuts Down Network Traffic:
Unlike routers, which send data to every segment in the network, bridges carry traffic only to the segment containing the destination device, thus curtailing unnecessary traffic and collisions.
Enhances Performance:
The division of a large network into smaller segments, which bridges facilitate, improves overall network speed and efficient utilization.
Automatically Learning:
Because they automatically learn devices connected to them, bridges are self-sufficient and do not need to be configured manually.
Inexpensive:
Bridges are inexpensive compared to routers and help to increase their usability in extending or segmenting networks without large costs.
Simple Use:
Because it does not require any modifications to be implemented on the devices connected, a transparent bridge is easy to deploy.
Cons
Limited to Layer 2:
Bridges could not route the packets between different IP networks as routers do. All operations of the bridges are restricted to the data link layer.
Scalability Problems:
These bridges are best for small to medium networks; beyond that, as the networks start to grow larger, they begin to slow down and become less efficient.
No Advanced Features:
Bridges do not have many advanced features, such as VLAN support, security filtering, and traffic management, which are usually found in switches and routers.
Broadcast Traffic:
Bridges do cut traffic down, but they also forward broadcast frames to every segment, thus causing flooding in very large networks.
Slower than Switches:
Bridges and other modern switches do the same thing, but much faster, and handle traffic better.
How Bridges Improve the Network Experience?
Bridges extensively enhance speed and efficiency in networks and their operations:
Reducing Data Collision: Basically, the bridge divides the network into smaller sections where fewer devices would have to share the same line. Therefore, the chances of losing or colliding with data are decreased.
Selective Forwarding: Instead of sending all devices the same data (as would occur in a hub), bridges will send traffic only down to that segment where the destination device resides. This conserves bandwidth and reduces unnecessary traffic.
Network Segmentation: Overall, bridges segregate large networks, which in turn helps to isolate, manage, and improve traffic flow that increases the performance and reliability of the network.
Learning: Bridges automatically learn as well as remember where each device is based on MAC addresses. Therefore, they will learn to make better decisions as time goes by.
Current Applications of Bridges in Computer Networking
1. Network Segmentation: Bridges are meant to divide large networks into small, manageable segments in order to minimize traffic congestion and increase performance through the filtering and forwarding of only necessary data between segments.
2. Traffic Management and Reduction: With the use of MAC addresses in identifying the data traffic, bridges filter and forward data only to the appropriate segment, hence reducing unwanted traffic and reducing collisions in an Ethernet LAN.
3. Joining Different Network Types: They can serve to connect different kinds of physical media or different network architectures, such as a connection of a wireless segment to wired Ethernet segments, without compromising the communication.
4. Wireless Bridging: Wireless bridges connect two or more LAN segments wirelessly, useful in environments where cabling is not available, such as connecting entirely separate buildings or floors without running cables.
5. VLAN Bridging: Traffic is isolated between VLANs in such Virtual LAN (VLAN) environments, and bridges may be an integral part of VLAN-aware switches, thus they only forward a frame within the same VLAN to increase security and reduce the broadcast traffic.
6. Making Networks More Reliable: Bridges can offer redundant network design by using protocols such as Spanning Tree Protocol (STP), hence preventing loops and ensuring that they always have a backup path in case of a failure.
7. Extending Network Reach: The bridges can increase the physical reach of a network by connecting that portion of the LAN to easily distance within the reach of specified areas, but as part of the same logical LAN.
Future of technology in bridging
With the advancement in technology, bridging networks have also improved. Programmable software-defined bridges offer a new way whereby network programming is done as opposed to their hardware counterpart. With the ability to program action within the bridge, it is possible to improve network agility while saving cost from not needing hardware replacement.
Integration with network automation changes how we manage bridges. Automated systems can configure bridges based on network conditions. They can also respond to problems more swiftly than human administrators. This automation becomes essential as networks grow more complex.
Security augmentations fill gaps in traditional bridging. Some of the characteristics of modern bridges are port security and MAC address filtering. Detection and prevention of MAC address Spoofing attacks are among the characteristics of certain bridges. All improvements in security make modern-day bridges more apt at handling today's threat environment.
Performance improvements come from hardware improvements and better algorithms. Modern switches, which have replaced the modern bridges, are coupled with very effective software programs. They are capable of handling millions of frames every second without dropping packets. Such performance gains would justify bandwidth-intensive applications such as video streaming.
FAQs
1. What is a bridge in networking?
It connects two or more segments of a network and forwards data based on MAC addresses.
2. How does a bridge help the performance of a network?
It decreases traffic by transmitting information only to the segment in which the destination device resides.
3. Can a bridge connect dissimilar kinds of networks?
Yes, a bridge can connect different physical networks, like wired and wireless.
4. What is the differentiating factor between a bridge and a switch?
A switch can be thought of as being a multi-port bridge to which many devices connect, whereas a bridge would connect mainly two segments.
5. Are bridges still useful today?
Bridges manage traffic, connect wireless and wired, and add to the reliability of the network.
In modern networks, bridges are at the core of interconnecting and managing different network segments. They help reduce traffic, extend the reach of networks, and maintain communication between devices. Even with newer technologies such as switches or routers, bridges are still relevant for many applications, mainly within wireless and VLAN environments.
